| Nguồn gốc: | TRUNG QUỐC |
|---|---|
| Hàng hiệu: | OPTFOCUS |
| Chứng nhận: | CE |
| Số mô hình: | 24 cổng chuyển đổi poe |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | USD13 per Unit |
| chi tiết đóng gói: | Hộp / Thùng |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | T / T, Western Union |
| Khả năng cung cấp: | 70000 mỗi tháng |
| tên sản phẩm: | Công tắc POE | Khoảng cách: | 20 nghìn triệu |
|---|---|---|---|
| Logo: | Tùy chỉnh | Kết nối: | SC, LC |
| MOQ: | 1 | Số mô hình: | OFS-PE-GT2DT24 |
| Nguồn gốc: | TRUNG QUỐC | Thời gian bảo hành: | 1 năm |
| Nhãn hiệu: | TÙY CHỌN |
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

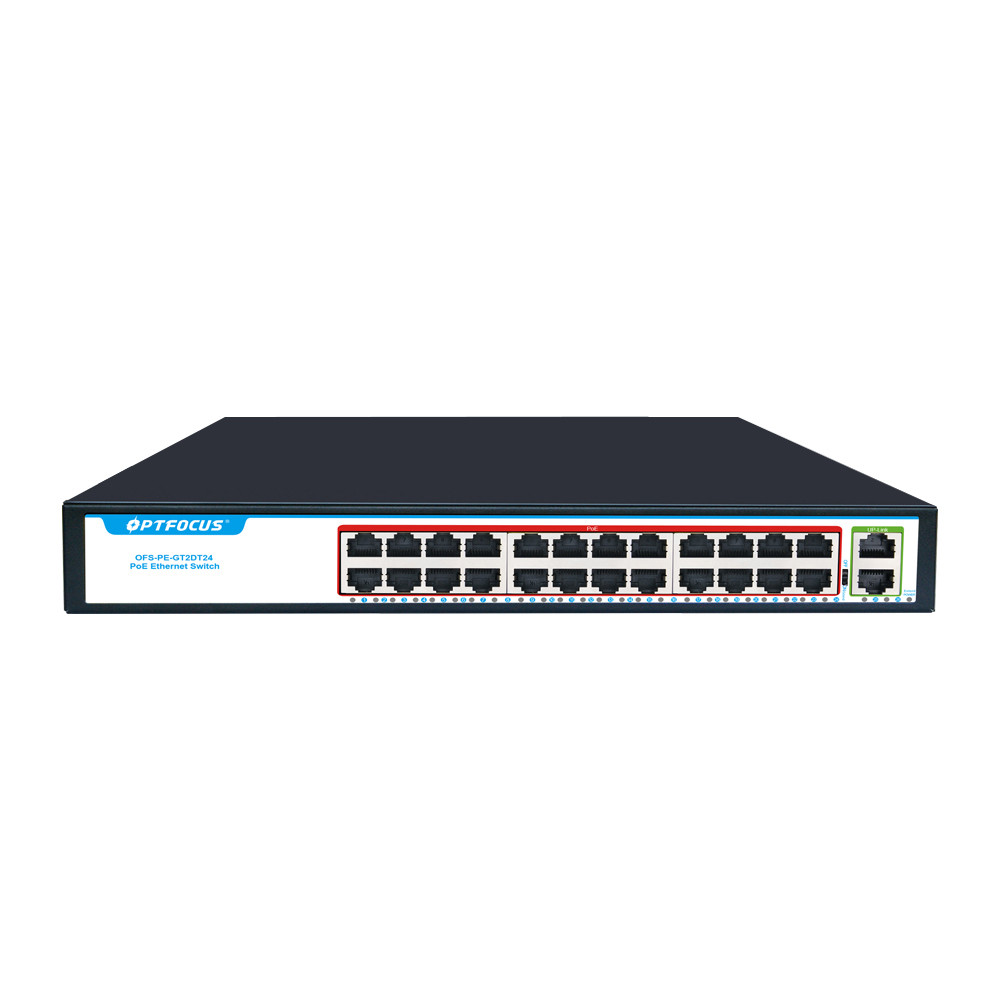

| Product Name | 24 Port GIGABIT ACTIVE POE Switch(24+2) |
| Product Model | 2420GB |
| DATA PIN | 1/2+,3/6- |
| Power Supply Type | Build In, Both 1/2+,3/6- and 4/5+7/8- |
| PoE Output Power | 15.4W/30W |
| Connector | 24*10/100mbps POE port,2*10/100/1000mbps UP-Link port |
| Network Medium | Cat5 (UTP) or more |
| Technology | |
| Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| PoE power |
15.4W per port(IEEE802.3af). Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
| Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size | 2k MAC address |
| Buffer memory | 48Kb embedded memory per unit |
| Backboard Bandwidth | 8.8G |
| Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| Power | |
| Input | 52V DC input |
| PoE power consumption | 30W per port(IEEE802.af/at) |
| Overload current protection | Present |
| Mechanical | |
| Casing | Metal |
| Installation | Desktop/Rack mounting |
| Interface | |
| LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
| Environment specification | |
| Operating temperature | -10-55℃(32-104℉) |
| Storage temperature | -40-70℃(14-158℉) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| Regulatory Approval | |
| ISO | Manufactured in ISO9001 facility |
| Safety | CE/CCC/FCC |
| Warranty | 2 years |
| Dimensions | 312*185*46mm (L*W*H) |
| Weight | 2.5Kg |
| Package List |
| Package List | 24 Port 10/100/1000M POE Switch*1 |
| User Guide*1 | |
| Warranty Card*1 | |
| Power cable*1 |
Pckaging & Shipping
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.
Advantage of our company :
1 National High-tech enterprise certification;
2 Fiber Optical Innovative &production team Over 10 years;
3 Fiber optical active and passive components production Workshop;
4 Strict quality management system;
5 Professional One stop supply & service;
6 OEM&ODM available;
7 Reliable and Timely customer services;
FAQ:
1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switch,GPON ONU,EPON ONU
4. How many days can shipment after ordered?
